GreyFlow™ Dripper Line Complete Kit with 50m Feeder Pipe

Name: GreyFlow™ Dripper Line Complete Kit with 50m Feeder Pipe
Brand: GreyFlow™
SKU: GW GFDL CK 50
Availability: InStock
Rating: 5.0 (1 reviews)

Be the first to review this product

Manufacturers: GreyFlow™ , AWWS™ Advanced Waste Water Systems

SKU: GW GFDL CK 50

This complete kit is the starter package with everything you need for the irrigation field. With 50m meters of feeder pipe for dripper bed run.

Choose the Product options below

Add this kit for maintenance

For all Dripper Feilds, you require flush valves for yearly maintenance.

Grey Flow™ Flush Valve Kit (X2 Valves) [+$108.70]

Add this kit if you have downhill runs where the slope (gradient) exceeds 3°

Add this kit if you have downhill runs where the slope (gradient) exceeds 3°.

Note: this kit is for a standard 100 linear metre dripper field with 7 x 14 linear metre dripper runs.

GreyFlow™ | Feeder Pipe - Flow Restrictor 6X Kit [+$270.00]

Add additional flow restrictors if you have more than 7 runs

If you have more than 7 runs, add one additional flow restrictor per run.

Note: you will need 1 less flow restrictor in total than your total amount of runs, as the last run is non-restricted.

GreyFlow™ | Feeder Pipe - Flow Restrictor [+$49.26 per item]
Enter quantity:

Availability: 3 in stock

$378.26 excl GST

excluding shipping

Qty:

i h

Products

This dripper tube is specially designed for greywater irrigation.

The GreyFlow™ Dripper Line technology is a specialized dipper system designed for GWDD (Grey-Water Diversion Devices)

This Dripper is not compatible with DGTS (Domestic Greywater Treatment Systems) Refer to DGTS Discharge Field Systems

Package Details

100m x GF Drip-Line 16mm⌀ 9L/hr @ .3m Spacing (Drippers)

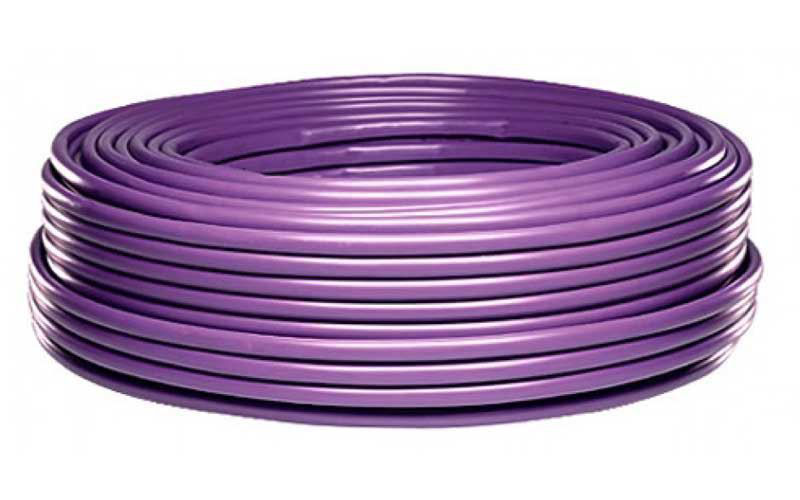

50m x 25mm⌀ Purple LDPE (Feeder)
13x Ratchet Clamps (Barb Fitting Clamps)
25 x Straight Take off Fittings (Barb Fitting)
2 x 25mm⌀ Jointers (Barb Fitting)
2 x 25mm⌀ Elbow (Barb Fitting)
3 x 25mm⌀ Plug End (Barb Fitting)
2 x 25mm⌀ Tee (Barb Fitting)
1x Budget Punch Tool (16mm Dripper Line Bard Fitting Tool)

Specifications

7 - 10 liters/hour
30 cm drip spacing
For sub-strata installations

Installation Diagram - Example

Dripper Line Installation Diagram

The typical dripper field is 5m x 14m (7m runs on either side of feeder pipe) and sits inside a dripper field plot of 6m x 15m.

In this setup, the 50m feeder pipe will leave you with a 35m run from the GreyFlow™ pump to the dripper field.
