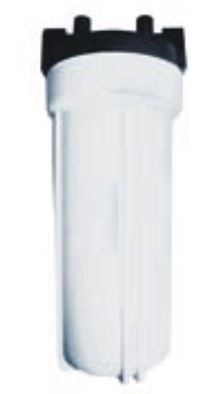

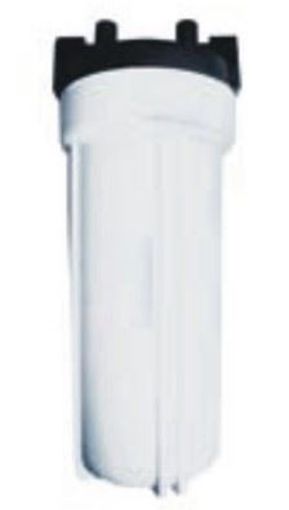

irriGREY Filter Housing and element Kit

The Netafim irriGREY Filter is installed downstream of Greywater Diversion Devices to protect Netafim Bioline dripperline.

Features

• Unique 3 dimensional filter element to collect lint and hair from greywater while ensuring minimum cleaning required
• Easy process to clean or replace element
• Designed to be installed downstream of the GWDD
• Filter comes with filter bracket to mount on wall and spanner for opening housing to clean/ replace element

Recommended to install Netafim DNL Valve upstream of filter as a quick relief valve to stop back pressure on pump if filter blocks.

Specifications

• 20mm Female inlet and outlet
• Maximum pressure 5 Bar
• Flow rate range from 600 to 6,000l/hr
• Polypropylene housing, EDPM seal and polyurethane filter element
• UV resistant
• irriGREY Filter supplied with one element pre-installed

Dimensions: 320mm long x 140mm diameter

This unique 400 micron geo-fabric element collects the lint and hair from greywater requiring less maintenance than disc or screen filters. These elements can be cleaned or replaced with either a single or 4 pack options.

Additional elements are available in either single pack (part #00060-004600) or 4 pack (part #00060-004700)
