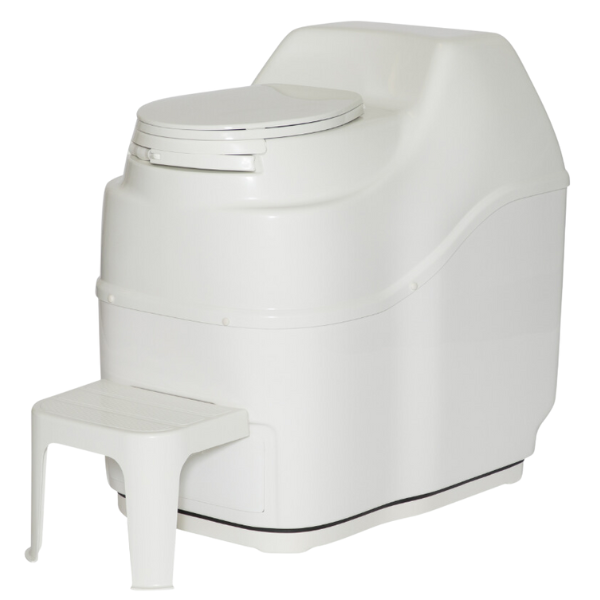

Sun-Mar™ | Excel 240

The Excel is the best-selling unit in North America and for good reason. It is a high capacity Bio-drum toilet that is very simple to operate, features well proven technology and is extremely reliable. The Excel was the first ever self-contained composting toilet to be certified by the National Sanitation Foundation (NSF). So, when you purchase an Excel, you are literally purchasing a composting toilet that sets the standard.

The Excel has enough capacity that it can be used just about anywhere; in residences, cottages and even in light commercial applications.

To simulate residential use the Excel was tested by the National Sanitation Foundation (NSF) at maximum capacity for 6 continuous months, during which the Excel produced no odour and produced a clean, safe compost. Only Sun-Mar self-contained units are listed for residential and cottage use by NSF, whose Standard #41 is the toughest composting performance standard in the world.

The 2" vent is attached at the top back of the Excel and can be installed invisibly by running it through the wall and up the outside wall. For comfort the Excel has a sturdy detachable footrest which can be removed to pull out the finishing drawer.

In normal use the Excel can normally evaporate all liquids, however a 1" emergency drain is fitted at the rear and this should be connected if the unit is to be used residentially or heavily, or if prolonged power outages are expected.

ELECTRICAL RATING 240 Volt AC

DIMENSIONS IN MM
SYSTEM DIMENSIONS 571W x 845H x 832L
FLOORSPACE REQUIRED 571W x 1048L with step

FLOORSPACE REQUIRED TO REMOVE THE SYSTEM TRAY 1213mm from back wall.

Listed capacities refer to the amount of people, on average, using the unit per day. Do not pick a unit that is below your capacity.
Residential/Continuous (Adults/Families) 3 adults or families of 5
Seasonal/Vacation (Adults/Families) 6 adults or families of 8

Electricals
Maximum Amps (With Heater On) 2.4
Fan Watts (Required or Optional Hookup) 35 (required)
Heater Watts (When Thermostat switches it on) 250 (can be turned off with a fuse)
Average Power Use in Watts (Heater on 1/2 time) 150

Vent & Drains
Vent Pipe 2″ PVC Thinwall (supplied)
Drains (Required or Optional Hookup) 1″ Drain (Optional for Seasonal/Vac use but required for Residential/Heavy Use)

Certifications

AS/NZS 1546.2:2008 - On-site domestic wastewater treatment units - Waterless composting toilets

Licence Number. SMKH25591

Against the AS/NZS 1546.2

Under SAI Global

NSF/ANSI 41 Standard
Non-Liquid Saturated Treatment Systems

This system is Certified for liquid containment, odors, and solid end products

Sun-Mar Composting Toilet Systems are CSA certified for electrical features under CSA file number LR55925
